Clamp Spacing
Clamp spacing is important!
Please note the following information on the installation of STAUFF clamps next to pipe bends, fittings and/or valves:

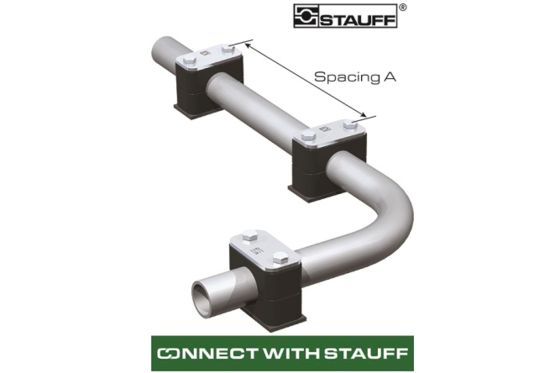

Pipe bends should be supported by STAUFF clamps positioned as close to the bends as possible.
If fittings and/or valves are incorporated in the fluid power system, it is recommended that support is provided by STAUFF clamps located directly next to these components to protect them from vibrations. Find more details about NRC clamps here.
Incorrect clamp spacing can be deterimental to your hydraulic system.
PIPE OD (mm) | SPACING (Metres) |
6.0 – 12.7 | 1.00 |
12.7 – 22.0 | 1.20 |
22.0 – 32.0 | 1.50 |
32.0 – 38.0 | 2.00 |
38.0 – 57.0 | 2.70 |
57.0 – 75.0 | 3.00 |
75.0 – 76.1 | 3.50 |
76.1 – 88.9 | 3.70 |
88.9 – 102 | 4.00 |
102 – 114 | 4.50 |
114 – 168 | 5.00 |
168 – 219 | 6.00 |
219 – 324 | 6.70 |
324 – 356 | 7.00 |
356 – 406 | 7.50 |
406 – 419 | 8.20 |
419 – 508 | 8.50 |
508 – 521 | 9.00 |
521 – 558 | 10.00 |
558 – 800 | 12.50 |
